Basic Info.
Model NO. | VACJ5-1000,1250A/1.14kV |
Short-Time Operating Frequency(20s) | 1000times/h |
Mechanical Life Time | 1,000,000times |
Clearance Between Open Contacts | 2.7-2.9mm |
Over Travel | 0.9-1.1mm |
Trademark | VACEM |
Origin | Wenzhou, China |
1. General description
This series vacuum contactor (short for contactor) is suitable for making, breaking, frequently starting and controlling AC motor in power network of AC 50 Hz, the main circuit rated voltage 1140V, rated current from 1000A to 1250A, which is also suitable for forming magnetic starter with each kind of protection devices (JDB electronic integrated protector, JR9 over current protection device, R-C absorber), especially forming anti-explosion magnetic starter.
The contactor conforms to GB/T14048.4, IEC60947-4-1, JB/T7122 standards, whose main performance meets the international standard.
2. Normal using conditions
- Ambient temperature: ≤+40℃, ≥-5℃, daily average ≤+35℃;
- Altitude:≤1000 m;
- Atmospheric conditions: Monthly average max. relative humidity in the wettest month is 90%, monthly average min. temperature is 25℃; taking special measurements for the condensation caused by temperature change;
- Impact vibration: The contactor should be mounted and used in places without shocking, vibration, or impact;
- In medium without explosion danger, gas or dust (including conductive dust) that erode metal or damage insulator;
- Places away from rain and snow;
- Pollution grade: grade-3;
- Installation class: III;
- Installation condition: The slant angle between installation surface and the vertical surface is not more than 15°

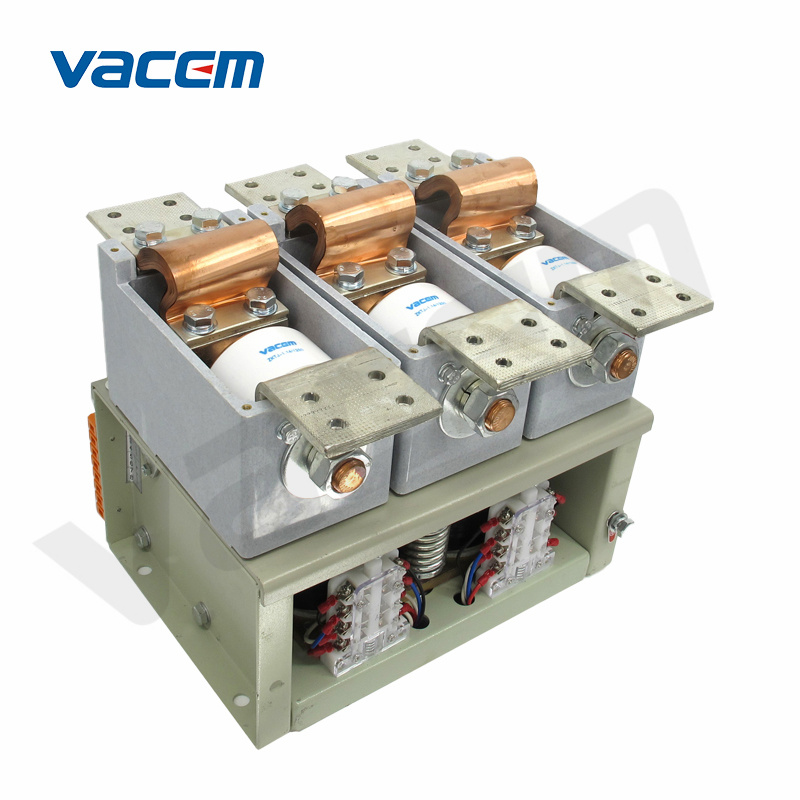

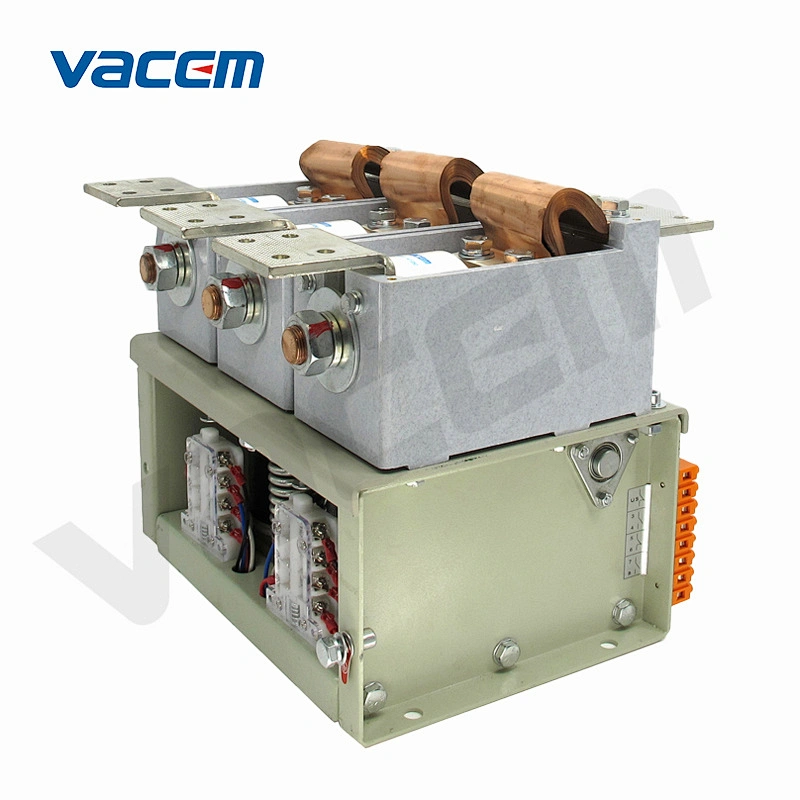

3. Structure and operation principle

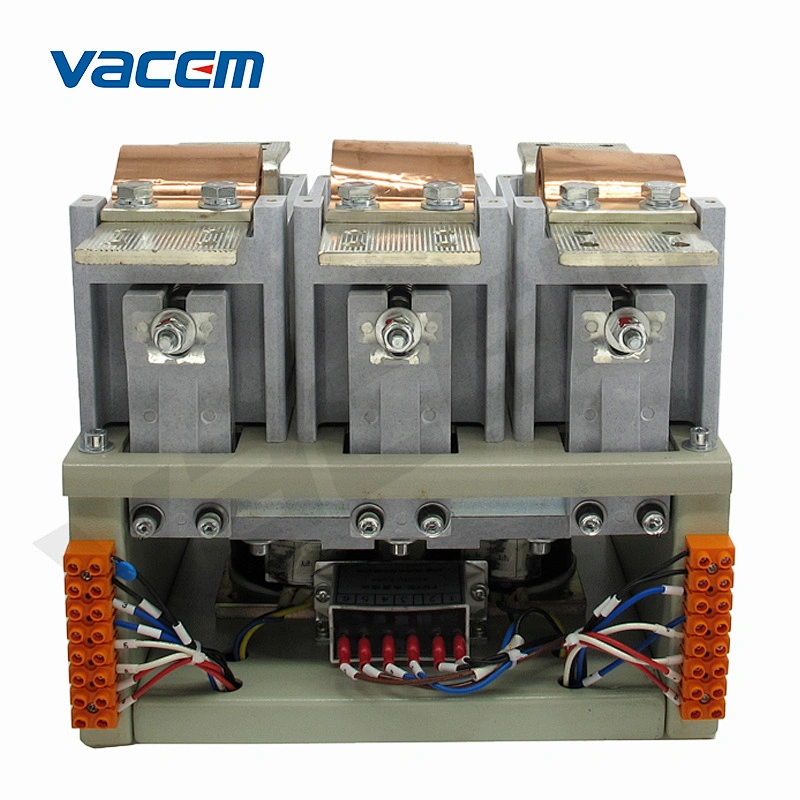

The contactor consists of frame, base, crutch, electromagnetic system, and vacuum interrupter. When applying control voltage to electromagnetic coil, the armature drives crutch rotating to connect inner contact of vacuum interrupter; after the electromagnetic coil power off, the main circuit switches off under the effect of opening spring. The electromagnetic coil consists of starting and keeping winding, which is changed by auxiliary contact.
4. Main technical parameter
Item | Unit | VACJ5-1000~1250/1.14 |
Main circuit rated voltage | kV | 1.14 |
Main circuit rated current | A | 1000 | 1250 |
Main circuit-making capacity | A/100times | 6000 |
Main circuit breaking capacity | A/10times | 4500 |
Limit breaking capacity | A/3times | 5000 |
Electrical life AC3 | times | 600,000 |
Electrical life AC4 | times | 60,000 |
Mechanical life time | times | 1,000,000 |
Rated operating frequency AC3 | times/h | 600 |
Rated operating frequency AC4 | times/h | 120 |
Short-time operating frequency(20s) | times/h | 1000 |
Clearance between open contacts | mm | 2.8±0.1 |
Over travel | mm | 1.0±0.1 |
5. Notes of ordering
Please indicates the following specification while ordering:
Contactor name, type, and quantity.
Rated voltage and rated current.
Rated control power voltage.
Quantity of spare vacuum interrupter.
