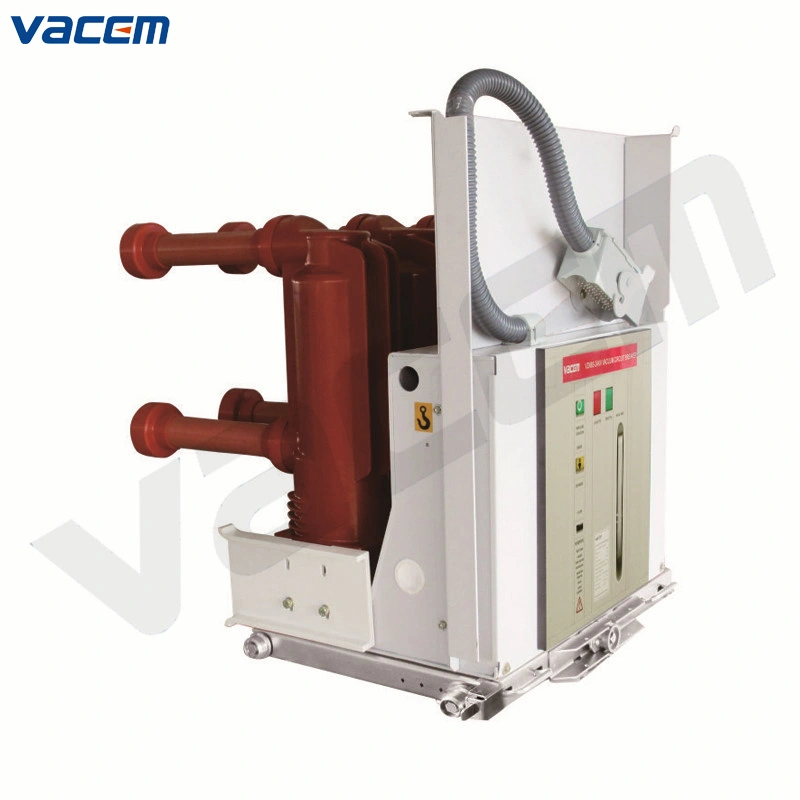

24kV Indoor High Voltage Vacuum Circuit Breaker (VAC83)

Model NO.: VAC83-24kV
Delivery: FOB
Minimum order quantity: 1 piece

Quantity:

Product Description

Basic Info.

Model NO.	VAC83-24kV
Poles Number	3
Type	Circuit Breaker
Function	Conventional Circuit Breaker
Certification	ISO9001-2000, CE, CCC
Rated Peak Withstand Current	50,63,80kA
Rated Short-Circuit Breaking Current	20,25,31.5kA
Clearance Between Open Contacts	12~14 mm
Contact Stroke	3~5mm
Mechanical Life (M2)	10,000(20,000)times
Trademark	VACEM
Origin	Wenzhou, China

1.General description

VAC83-24kV series VCB is a new indoor switchgear independently developed by VACEM Co.,Ltd. for 24KV power system.

The optimized modular spring operating mechanism is adopted in the mechanism part, which has high reliability, long service life and free maintenance.

VAC83-24kV series vacuum circuit breaker can be used as the protection and control unit of power equipment for industrial and mining enterprises. It is especially suitable for the worse environment with frequent operation, multiple disconnection of short-circuit.

2.Main technical parameter

Item	Unit	Data
Rated voltage	kV	24
Rated frequency	Hz	50
Rated insulation level 1 min power frequency withstand voltage pole to earth	kV	65
Rated insulation level 1 min power frequency withstand voltage phase	kV	79
Rated insulation level lightning impulse withstand voltage pole to earth	kV	125
Rated insulation level lightning impulse withstand voltage phase	kV	145
Power frequency withstand voltage of secondary circuit	V	2000
Rated current	A	630,1250, 1600, 2000, 2500, 3150
Rated short-circuit breaking current	kA	20, 25, 31.5
Rated short-time withstand current	kA	20, 25, 31.5
Rated short circuit duration	s	4
Rated peak withstand current	kA	50, 63, 80
Rated short-circuit making current	kA	50, 63, 80
Rated short circuit current breaking times (class E2)	times	30
Rated single/back to back capacitor bank breaking current	A	630/400
Clearance between open contacts	mm	12~14
Contact stroke	mm	3~5
Allowable wear thickness of contact	mm	3
Average opening speed	m/s	1.1~1.6
Average closing speed	m/s	0.6~1.1
Contact closing bounce time	ms	≤2
Different phases of contact closing and opening	ms	≤2
Rebound amplitude of opening contact	mm	≤2
Opening time (rated voltage)	ms	20~50
Closing time (rated voltage)	ms	30~70
Mechanical life (M2)	times	10,000(20,000)
Rated operating voltage	V	AC110/220 DC110/220
Rated operation sequence		O-0.3s-CO-180s-CO
