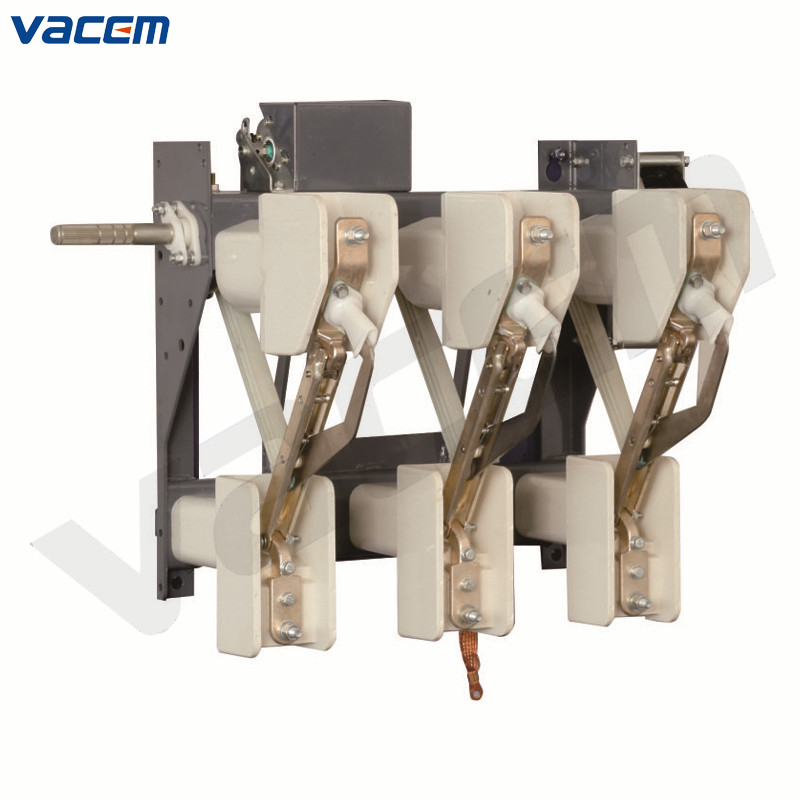

12kV 24kV Indoor High Voltage Load Break Switch (VACF18)

Model NO.: VACF18
Delivery: FOB
Minimum order quantity: 1 piece

Quantity:

Product Description

Basic Info.

Model NO.	VACF18
Series	Three
Certification	CE, ISO9001
Brand	Vacem
Rated Current	630A
Rated Short-Circuit Making Current	50kA
Rated Peak Withstand Current	50kA
Max.Fuse Current(XRNT Fuse)	200A
Mechanical Life	2000 times
Trademark	VACEM
Origin	Wenzhou, China

1.General description

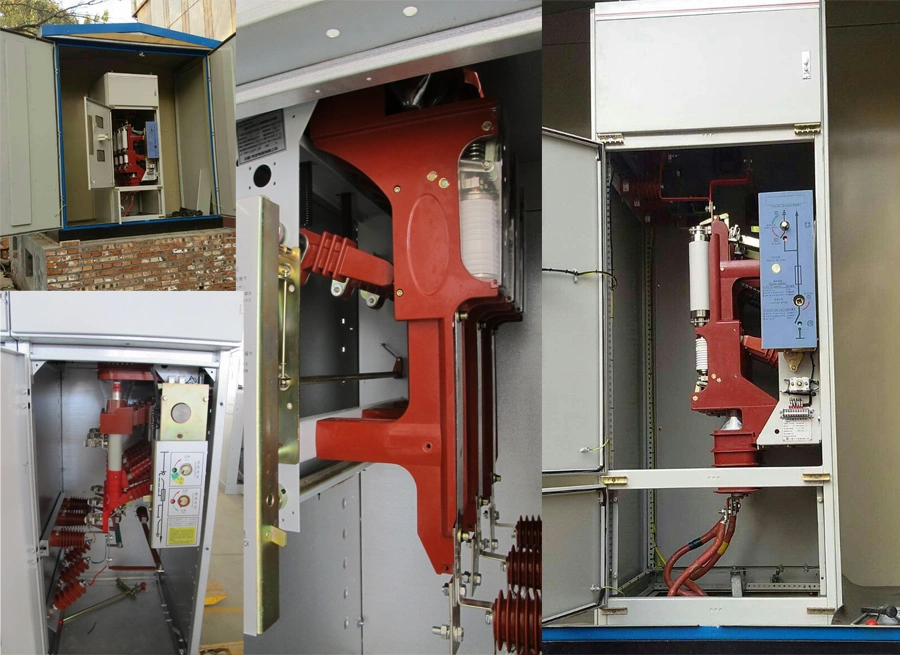

VACF18 load break switch offers switchgear owners and assemblers the advantages of an advanced interrupting technology and proven, dependable performance in a compact design. The switch is available to switchgear assemblers as a building block for metal-enclosed and pad-mounted switchgear application in ratings from 12 upto 24kV.

The standard VACF18 switch includes a steel frame with stand-off insulators, a unique puffer-type arc extinguishing system, an operating mechanism and current-carrying components, including blade-type interrupters with cast hinges and jaw connectors.

Optional accessories and features include a variety of operating handles, a motor operator, auxiliary switches, a shunt trip device, fuse bases, mechanical fuse tripping, grounding switches, mechanical door interlocking and key interlocking.

2.Main technical parameter

Item	Unit	Data
Rated voltage	kV	12	24
Rated current	A	630	630
Rated power frequency	Hz	50/60	50/60
Rated short-circuit making current	kA Peak.	50	50
Rated peak withstand current	kA Peak.	50	50
Short time withstand current: 1 Sec.	kA eff.	31.5	25
Short time withstand current: 2 Sec.		25	25
Short time withstand current: 3 Sec.		20	16
IEC 62271-105(IEC 420 1990-11)Max.breaking current in co-operation with fuses IEC 62271-105(IEC 420 1990-11)	A	1600	900
Max.fuse current(XRNT Fuse)	A	200	200
Rated power frequency withstand voltage (50Hz 1min)
-To earth and between phase	kV	42	65
-Between fracture	kV	48	79
Impulse withstand voltage (1.2/50μs)
-To earth and between poles	kV	75	125
-Between fracture	kV	85	145
Mechanical life	times	2000	20
