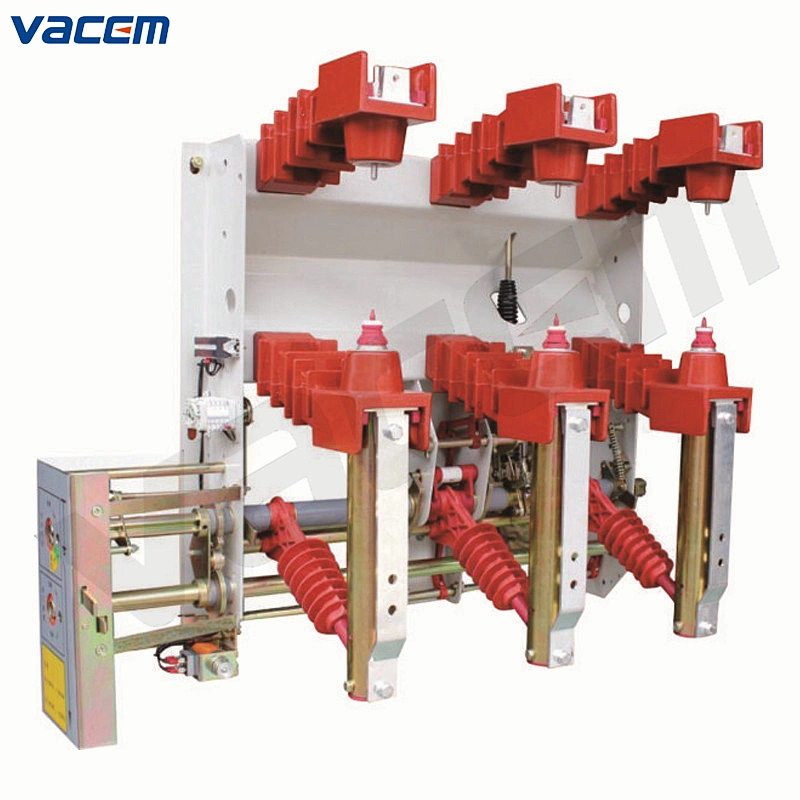

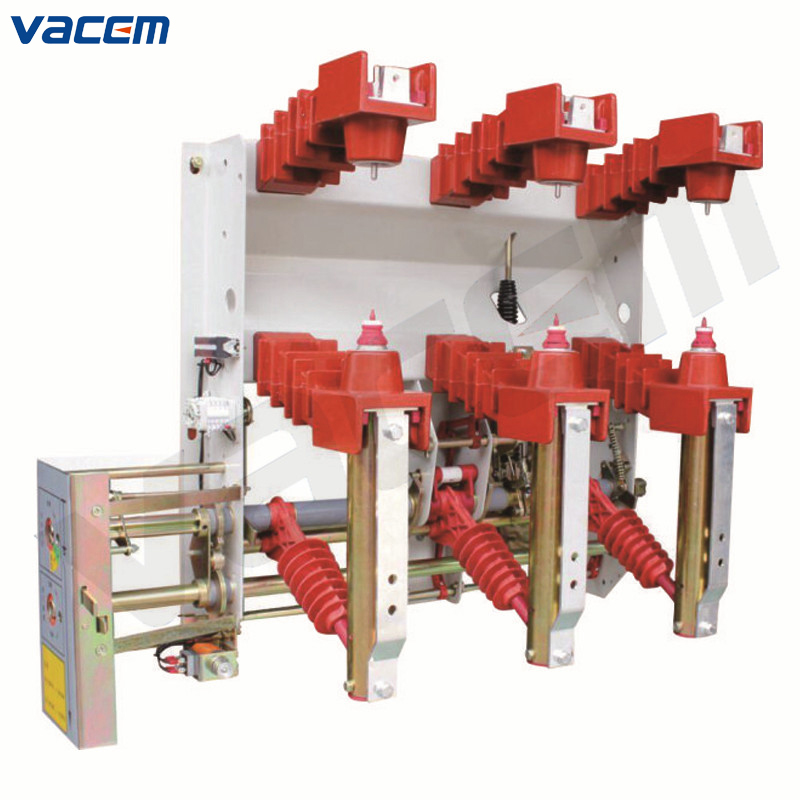

24kV Indoor High Voltage Air-Compression Load Break Switch (VACF12)

Model NO.: VACF12-24kV
Delivery: FOB
Minimum order quantity: 1 piece

Quantity:

Product Description

Basic Info.

Model NO.	VACF12-24kV
Series	Three
Certification	CE, ISO9001
Brand	Vacem
Rated Current	630A
Rated Cable Charging Breaking Current	16A
Mechanical Life	2000 times
Rated Service Break Current	1050A
Maximum Rated Current of Fuse	80A
Trademark	VACEM
Origin	Wenzhou, China

1.General description

VACF12-24kV series M.V. air type load break switch and its combination apparatus are used for AC 24kV, 50Hz indoor M.V. switchgear. The specific technical parameters of the load switch are high and the action is reliable. The operating mechanism is basically formed as manual spring energy storage type, and it can also be equipped with electromagnetic spring operating mechanism. Based on the principle of air pressure arc extinguishing, it can be broken many times without replacing arc extinguishing tube.

Under normal circuit conditions, the M.V. load switch can turn on,carry and turn off load current, and has the ability to turn on short-circuit current and bear short-circuit current at a specified time. M.V. load switch is suitable for installation in ring network switch cabinet and other types of switch cabinet for receiving and distributing electric energy.

VACF 12-24kV series load switch can be equipped with grounding switch. The grounding switch has the same short-circuit closing capacity as the load switch, so as to enable and dynamic thermal stability, and has strict mechanical interlock with the load switch, so as to ensure no misoperation in structure.

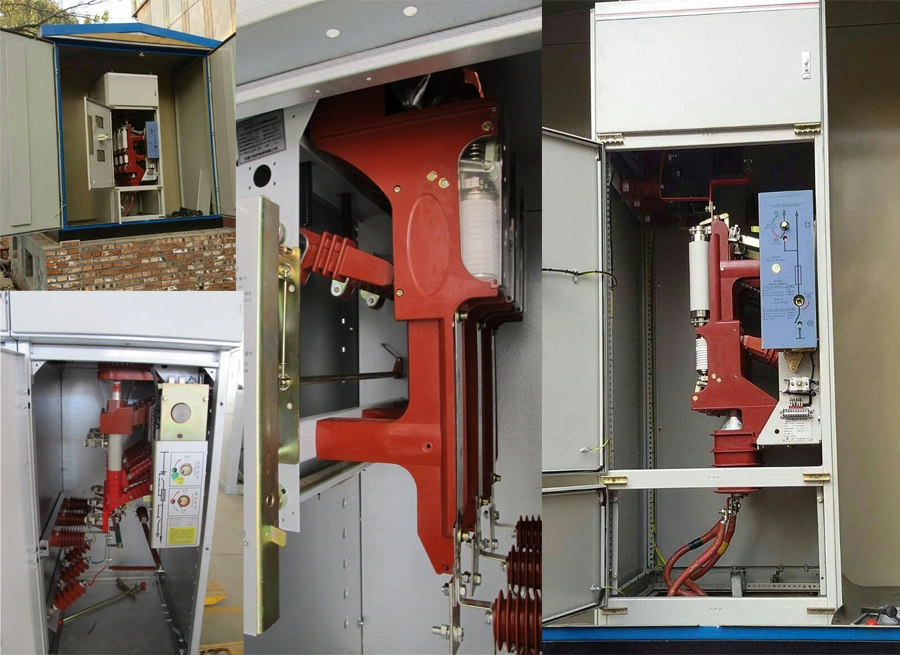

M.V. load switch is suitable for installation in ring network switch cabinet and other types of switch cabinet for receiving and distributing electric energy.

2.Main technical parameter

Item	Unit	Data
Rated voltage	kV	24
Rated frequency	Hz	50
Rated current	A	630
Maximum rated current of fuse	A	80
Rated active load breaking current	A	630
Rated closed-loop breaking current, rated short-time withstand current(2s)	kA	20
Rated short-circuit making current, rated peak withstand current	kA	50
1 min power frequency withstand voltage,phase to phase and to ground/fracture	kV	65/79
Lightning impulse withstand voltage(peak value) phase to phase and to ground/break	kV	125/145
Rated cable charging breaking current	A	16
Mechanical life	times	2000
Rated service break current	A	1050
Rated short circuit breaking current of fuse	kA	31.5
Phase distance	mm	300±3
Total stroke of conducting rod	mm	290±5
Opening distance between dynamic and static arc contact at opening position	mm	>215
Electric contact overtravel of moving contact rod	mm	42±3
Loop resistance	μΩ	≤300
