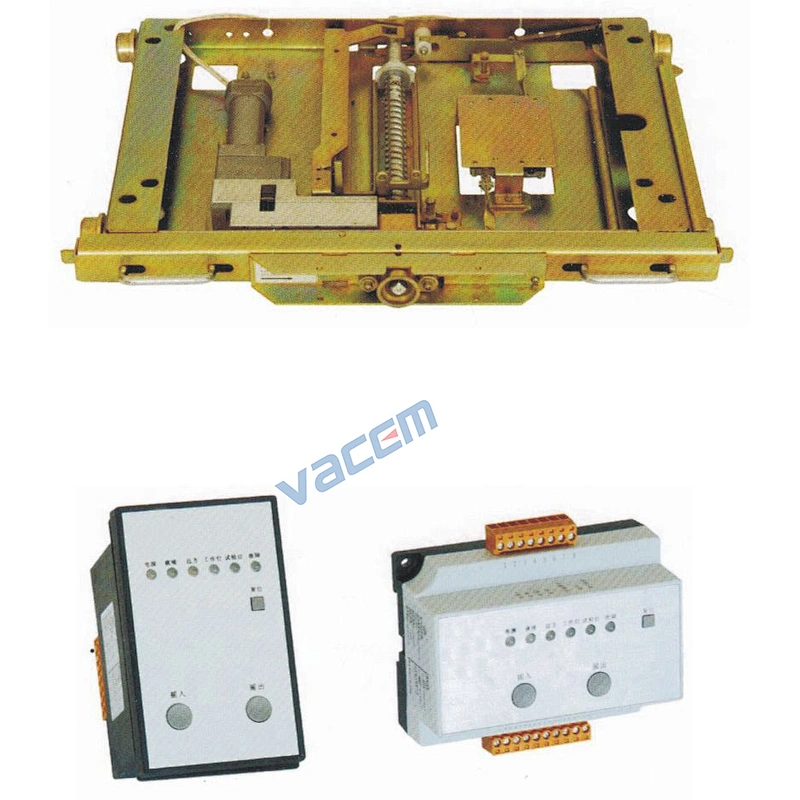

Electric Chassis

• Specification Code:VACDDP-4-800
• Specification Description:outline dimension and installation dimension of electric chassis

 VACDDP-4-800 outline dimension and installation dimension of electric chassis

.

Note: opening size and mode of installation are as common mode , when the input power is AC/DC 110V,please mark or notice it in advance

         Electric chassis assembling                                           Installation opening size of panel controller

The four Ф5 openings in left picture are tthe fixed installation openings of controller on the panel, Ф20~40 opening is used for connection cable which goes through inside the controller, the opening is used for data cable of the controller, it has no strirt requirement of processing dimension tolerance.

Dimensions and wiring diagram of panel controller of the electric chassis

Instructions of indicators,buttons and contacts of the controller

Instructions of indicators,buttons and contacts of the controller

Dimensions and wiring diagram of panel controller of the electric chassis

Controller circuit schematics of MCU 05 TX electric chassis

Instructions of indicators,buttons and contacts of the controller
