12kV High Voltage Embedded Pole for Vacuum Circuit Breaker

Model NO.: VEP1-12/1250-25(31.5) (VAC605)
Delivery: FOB
Minimum order quantity: 1 piece

Quantity:

Product Description

Basic Info.

Model NO.	VEP1-12/1250-25(VAC605) VEP1-12/1250-31.5(VAC605)
Classification	Inorganic Insulation Material
Certification	ISO9001
Color	Brown
Brand	Vacem
Power Frequency Withstand Voltage	48kV
Lightning Impulse Withstand Voltage	95kV
Mechanical Life	10,000 times
Clearance Between Open Contacts	8-10mm
Rated Short-Circuit Duration	4s
Trademark	VACEM
Origin	Wenzhou, China

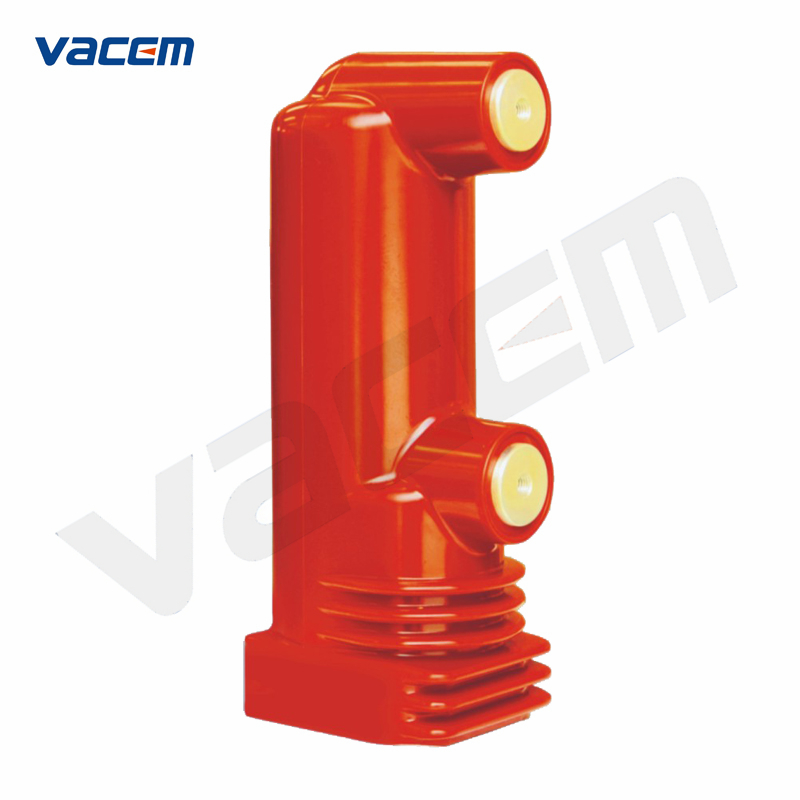

Embedded pole

VEP1-12/1250-25(VAC605)
VEP1-12/1250-31.5(VAC605)

1.General description

Product features:

Embedded pole uses the insulation material to reliably sealing combine vacuum interrupter and the main loop conductive element, and the insulation support as a whole, which has the advantages of simple assembly, stable weight, high reliability and strong environmental pollution tolerance.

Application:

Matched with relevant indoor&outdoor vacuum circuit breaker or vacuum distribution device, it is especially useful to frequent operation places, such as electric power, machinery, chemical industry, metallurgy, mining and other departments, with frequency 50Hz/60Hz, rated voltage 12kV, 17.5kV, 24kV, 27.5kV, 40.5kV.

H=205mm
Meets or exceeds the requirement of IEC60694 and JB-T11203-2011.

2.Main technical parameter

Specification of VI

Parameter item	Unit	Data
Rated voltage	kV	12
Rated current	A	1250
Rated frequency	Hz	50/60
Rated short-time power frequency withstand voltage(1min)	kV	48
Rated lightning impulse withstand voltage	kV	95
Rated short-circuit breaking current	kA	25/31.5
Rated short-time withstand current	kA	63/80
Rated peak withstand current	kA	63/80
Rated short-circuit making current	kA	25/31.5
Rated short-circuit duration	s	4
Rated single capacitor bank breaking current	A	400
Rated back to back capacitor bank breaking current	A	400
Rated operating sequence		O-0.3s-CO-180s-CO
Breaking operations of rated short circuit breaking current	times	30
Mechanical life	times	10000
Contact automatic closing ability	N	100±50
Force required to hold contact open at full stroke	N	160±50
Circuit resistance at lowest rated contact force	μΩ	≤25
Contact limit erosion	mm	3
Internal gas pressure of vacuum interrupter	Pa	≤1×10-3
Partial discharge	Pc	≤5

Specifications required for matched switchgear

Parameter item	Unit	Data
Clearance between open contacts	mm	9±1
Average opening speed	m/s	1.05±0.15
Average closing speed	m/s	0.7±0.1
Rated contact pressure	N	2500±200/3100±200
Contact bouncing duration at closing operation	ms	≤3
Closing and opening non-simultaneity of contacts	ms	≤2
Maximum rebound during opening	mm	≤3
